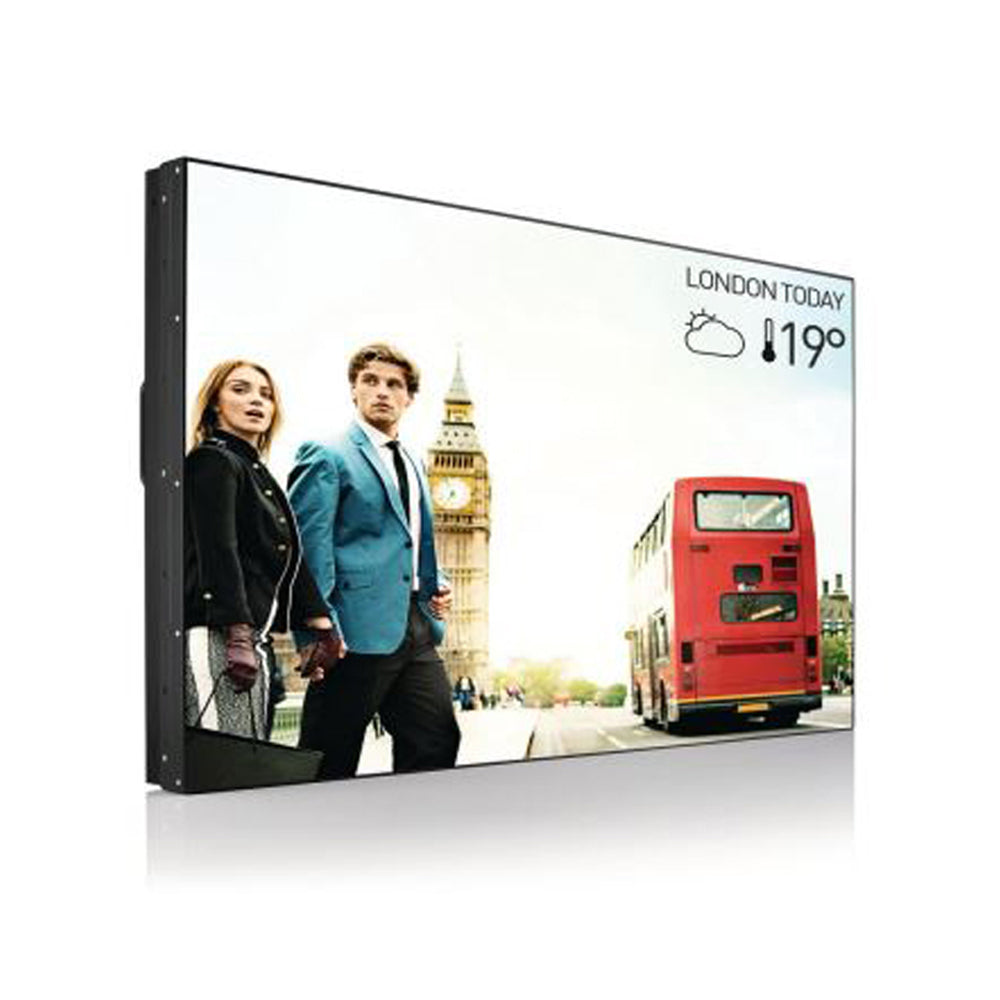

NEW PHILIPS WALL DISPENSER CABINET
Additional product details
Philips Signage Solutions
Video Wall Display
- 55"
- Direct LED Backlight
- Full HD
- 500cd/m²
Full HD LED technology
White LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.
IPS Display Technology
Philips IPS displays uses an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in portrait mode. IPS displays gives you remarkably crisp images with vivid colors, especially suitable for professional video wall and menuboard applications which demand color accuracy and consistent brightness at all times.
Ultra Narrow Bezel
The next generation of video wall displays is designed with industry narrowest bezels and advanced alignment solutions. Fully exploit your impactful signage content with ultra narrow bezel displays, and make sure your message does not get lost by thick bezels. With the ultra narrow bezels you can create seamless video wall configurations of virtually any size.
Advanced Colour Calibration
The Advanced Colour Calibration kit controls the luminance of the backlight, standardizes the gamma curve and calibrates the greyscale of your display network. Whether you have an impressive video wall, a catchy mosaic layout, a menu board installation or a control room each display can be adjusted to the same colour values. With this optional kit you ensure consistent colour performance over all displays in your network.
FailOver
Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.
SmartPower
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
OPS Insert
Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.
CMND & Control
With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software
updates from a remote location, and the ability to customize and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.
Technical Specifications
Picture/Display
• Diagonal screen size: 54.6 inch / 138.7 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m²
• Contrast ratio (typical): 1400:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.21(H)×0.21(V)
• Display colors: 16.7M colors
Supported Display Resolution
• Computer formats
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1440 x 900 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
1920 x 1200 60Hz
• Video formats
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
3840 x 2160 30Hz
Connectivity
• Video input: DVI-D (x1), HDMI 2.0 (x1), USB 2.0 (x1), VGA (Analog D-Sub)
• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
Convenience
• Energy saving functions: Ambient light sensor,
Smart Power
• Placement: Landscape (24/7), Portrait (24/7)
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 10 x 10
• RJ45 hub: 2 ports
Dimensions
• Bezel width: 2.475mm(T). 1.025mm(B),2.48mm(L), 1.02mm(R)
• Set dimensions (W x H x D): 1213.5 x 684.3 x 111.15 mm
• Product weight: 28.84 kg
• VESA Mount: 600(H)*400(V)
Operating conditions
• Temperature range (operation): 5 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80%
• Humidity range (storage) [RH]: 10 ~ 90%
Power
• Standby power consumption: <0.5W
• Consumption (Max): 260 W
• Consumption (Typical): 245 W
• Mains power: Universal (AC 100 - 240V)
Accessories
• Included accessories: AC Power Cord
• Stand: Option
Miscellaneous
• On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish
• Regulatory approvals: CCC, CECP, CEL, IEC/
UL62368
• Warranty: 3 year warranty
Interactivity
• Plug and play: HID compliant
Internal Player
• CPU: MSD91H1BN2
• GPU: 2D graphics engine
