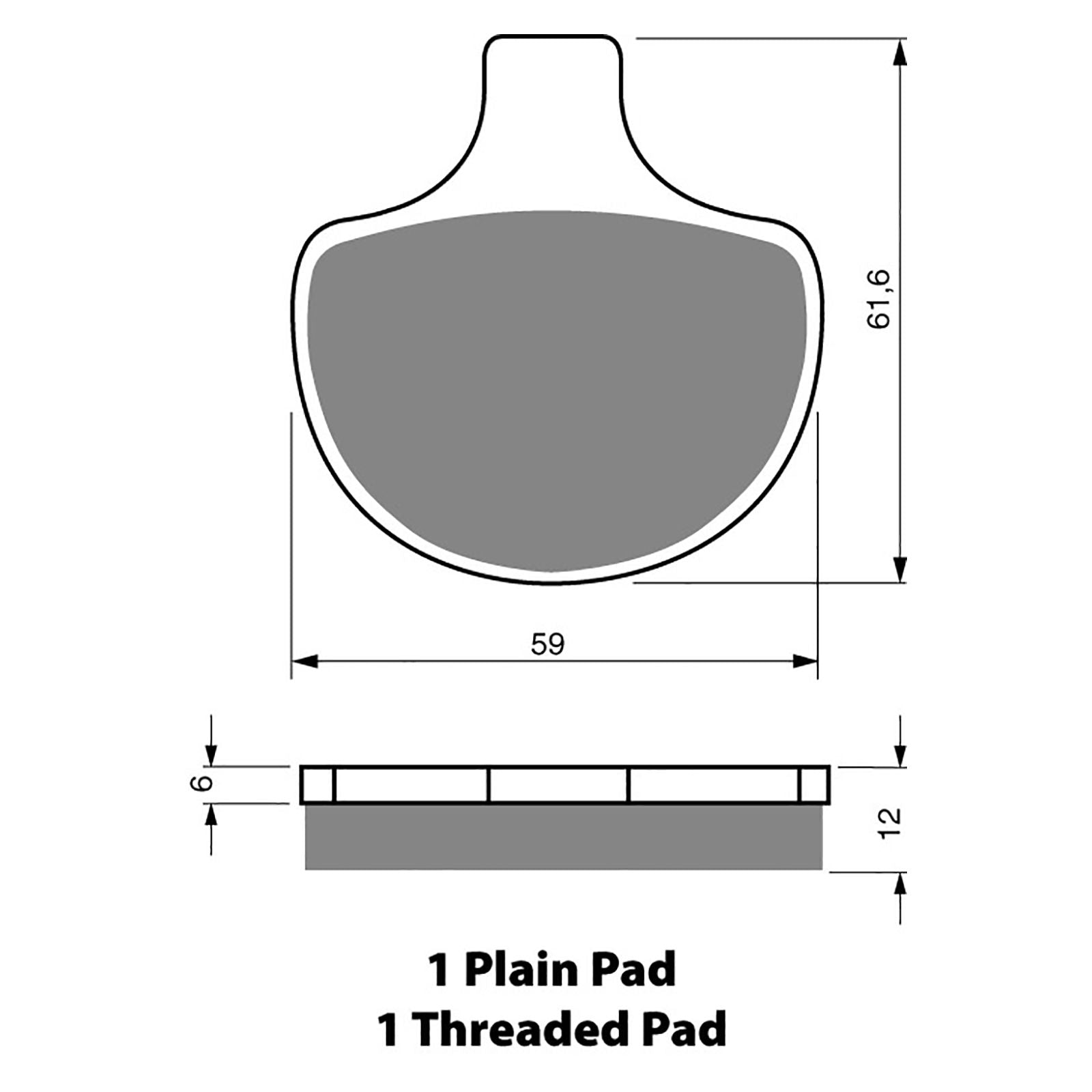

New GOLDFREN Brake Pad - S3 Sintered Sports (PBPH74) #GF057S3
Additional product details
GOLDfren began manufacturing sintered disc brake pads for a wide range of off-road and road motorcycles in 1991, nearly three decades on from their first motorcycle brake pads GOLDfren has become one of the largest aftermarket manufacturers in the motorcycle brake disc pad industry. Their development of next-generation products has kept them at the technological forefront of Sintered Friction Braking providing you with confidence in the performance, durability and reliability of your brakes.

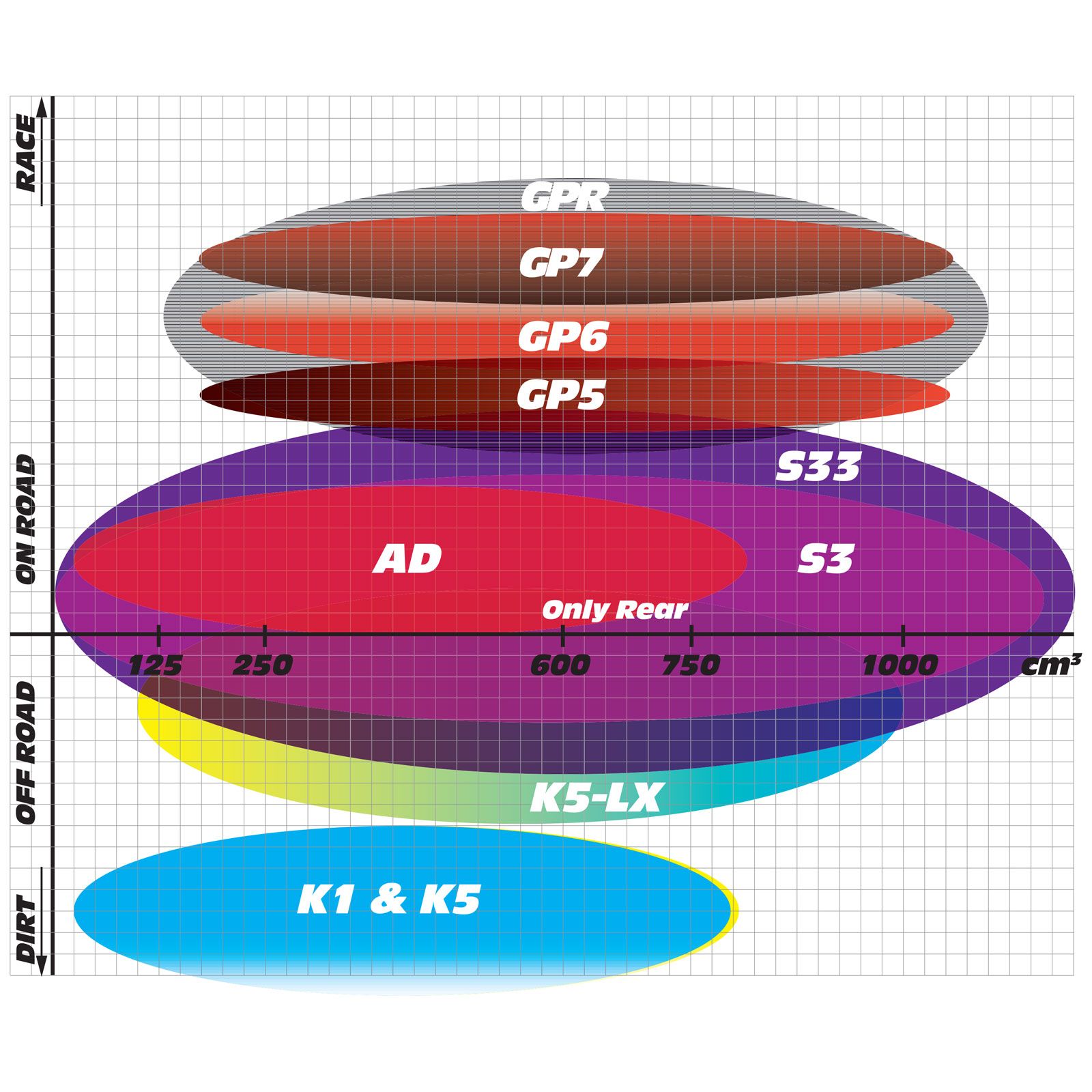

S3 Series:
The S3 sintered compound is optimal in dry and wet conditions for road & off-road motorcycles. For the road application, S3 pads are suitable for both the front and rear brake while on off-road applications the S3 is only recommended for the front brake. The S3 series is designed for low abrasive interaction with the rotor and quieter braking due to the ceramic composite material. It has an HH friction rating and performs better at higher temperatures than the AD compound. Friction materials contain metal-ceramic with a bronze-graphite and non-metallic friction additives are spread evenly on the base fine bronze body to achieve optimal friction properties.
Features:
- Very high static friction coefficient
- Minimal difference between wet and dry braking performance
- Good abrasive resistance
- Low abrasive interaction with the brake rotor material
- Longer life compared to organic and Kevlar composite materials
Application:
- For riders who demand a bit more than average from their bikes
- Recommended on both front and rear brakes (road application)
- Can also be used on the front brakes of off-road bikes and ATVs
- Works well on both dry and wet conditions
Operating Parameters:
- Specific pressure: 3.0 Mpa
- Sliding speed: 45 m/s
- Constant maximum temp: 450°C
- Short time maximum temp: 800°C
- Counter-surfaces: steel disks
What is a sintered brake pad?
GOLDfren only manufacturers sintered brake pads that contain metal-ceramic and ceramic-carbon friction materials, these materials allow for less brake dust and a quieter braking experience. Sintered brake pads are made by fusing together metallic particles under high temperature and pressure which enhances friction properties and pad life, resulting in longer life and stronger braking. Sintered brake pads experience no brake fade when operating at high temperatures and in wet conditions. They also last up to 5 times longer than organic pads and provide additional braking strength. All materials used are environmentally friendly and do not contain any lead, asbestos, fibreglass or formaldehyde.
Reminder: one set of brake pads services one brake disc, if you are servicing multiple discs you will need multiple sets of brake pads.
| Make | Model | Year Range | Capacity |
|---|---|---|---|
| Harley Davidson | FLH 1340 ELECTRA GLIDE | 1985-1985 | 1340 |
| Harley Davidson | FLHR 1340 ROAD KING | 1994-1998 | 1340 |
| Harley Davidson | FLHR 1450 ROAD KING | 1999-1999 | 1450 |
| Harley Davidson | FLHRCI ROAD KING CLASSIC | 1998-1999 | 1450 |
| Harley Davidson | FLHRI 1340 ROAD KING F/I | 1996-1997 | 1340 |
| Harley Davidson | FLHS 1340 ELECTRA GLIDE SPORT | 1990-1994 | 1340 |
| Harley Davidson | FLHT 1340 ELECTRA GLIDE | 1985-1999 | 1340 |
| Harley Davidson | FLHTC 1340 ELECTRA GLIDE CLASSIC | 1986-1999 | 1340 |
| Harley Davidson | FLHTC Electra Glide Classic | 1984-1985 | 1314 |
| Harley Davidson | FLHTC Electra Glide Classic | 1999-1999 | 1450 |
| Harley Davidson | FLHTC Touring | 1995-1998 | 1340 |
| Harley Davidson | FLHTCI 1340 ELECTRA GLIDE CLASSIC | 1995-1999 | 1340 |
| Harley Davidson | FLHTCU 1340 ULTRA CLASSIC E-G | 1989-1989 | 1340 |
| Harley Davidson | FLHTCU ELECTRA GLIDE ULTRA CLASSIC | 1990-1998 | 1340 |
| Harley Davidson | FLHTC-U Touring | 1995-1998 | 1340 |
| Harley Davidson | FLHTCUI 1340 ELECTRA GLIDE ULTRA CLASSIC F/I | 1995-1998 | 1340 |
| Harley Davidson | FLHTCUI 1450 ELECTRA GLIDE ULTRA CLASSIC F/I | 1999-1999 | 1450 |
| Harley Davidson | FLST 1340 HERITAGE SOFTAIL | 1986-1990 | 1340 |
| Harley Davidson | FLSTC SOFTAIL HERITAGE CLASSIC | 1986-1999 | 1340 |
| Harley Davidson | FLSTF SOFTAIL FAT BOY | 1990-1999 | 1340 |
| Harley Davidson | FLSTN SOFTAIL NOSTALGIA | 1993-1996 | 1340 |
| Harley Davidson | FLSTS 1450 HERITAGE SPRINGER | 1999-2006 | 1450 |
| Harley Davidson | FLSTS HERITAGE SPRINGER | 1997-1999 | 1340 |
| Harley Davidson | FLSTS HERITAGE SPRINGER | 2000-2003 | 1450 |
| Harley Davidson | FLSTSB 1584 CROSS BONES | 2008-2011 | 1584 |
| Harley Davidson | FLSTSC SOFTAIL SPRINGER CLASSIC | 2006-2006 | 1450 |
| Harley Davidson | FLSTSC SOFTAIL SPRINGER CLASSIC | 2007-2007 | 1573 |
| Harley Davidson | FLTC 1340 TOUR GLIDE CLASSIC | 1984-1992 | 1340 |
| Harley Davidson | FLTC Tour Glide Classic | 1984-1985 | 1314 |
| Harley Davidson | FLTCU 1340 ULTRA CLASSIC TG | 1989-1995 | 1340 |
| Harley Davidson | FLTCUI 1340 ULTRA CLASSIC TG FI | 1996-1996 | 1340 |
| Harley Davidson | FXD DYNA SUPER GLIDE | 1993-1999 | 1340 |
| Harley Davidson | FXDB 1340 DAYTONA DYNA GLIDE | 1992-1992 | 1340 |
| Harley Davidson | FXDB 1340 DYNA GLIDE STURGIS | 1991-1992 | 1340 |
| Harley Davidson | FXDC 1340 DG CUSTOM | 1992-1992 | 1340 |
| Harley Davidson | FXDL DYNA LOWRIDER | 1993-1999 | 1340 |
| Harley Davidson | FXDS 1340 DYNA CONVERTABLE | 1996-1998 | 1340 |
| Harley Davidson | FXDS 1340 DYNA CONVERTABLE w/41mm Forks | 1996-1998 | 1340 |
| Harley Davidson | FXDS 1340 DYNA SPORT | 1993-1995 | 1340 |
| Harley Davidson | FXDS 1340 DYNA SPORT w/41mm Forks | 1993-1995 | 1340 |
| Harley Davidson | FXDWG 1340 DYNA WIDE GLIDE | 1993-1998 | 1340 |
| Harley Davidson | FXDWG 1340 DYNA WIDE GLIDE w/39mm Forks | 1993-1998 | 1340 |
| Harley Davidson | FXDWG 1450 DYNA WIDE GLIDE | 1999-1999 | 1450 |
| Harley Davidson | FXDWG 1450 DYNA WIDE GLIDE w/39mm Forks | 1999-1999 | 1450 |
| Harley Davidson | FXLR DYNA LOWRIDER CUSTOM | 1987-1994 | 1340 |
| Harley Davidson | FXR 1340 SUPER GLIDE | 1987-1987 | 1340 |
| Harley Davidson | FXR 1340 SUPER GLIDE w/39mm Forks | 1987-1987 | 1340 |
| Harley Davidson | FXR DYNA SUPER GLIDE | 1986-1994 | 1340 |
| Harley Davidson | FXRC 1340 SG SPECIAL | 1985-1987 | 1340 |
| Harley Davidson | FXRC 1340 SG SPECIAL w/39mm Forks | 1987-1987 | 1340 |
| Harley Davidson | FXRD 1340 SG GRAND TOURING | 1986-1986 | 1340 |
| Harley Davidson | FXRS 1340 LOW GLIDE | 1984-1993 | 1340 |
| Harley Davidson | FXRS 1340 LOW RIDER SPORT | 1986-1993 | 1340 |
| Harley Davidson | FXRS DYNA LOWRIDER CONVERTIBLE | 1988-1994 | 1340 |
| Harley Davidson | FXRT 1340 SPORT GLIDE | 1984-1993 | 1340 |
| Harley Davidson | FXRT 1340 SPORT GLIDE TOURING w/39mm Forks | 1987-1987 | 1340 |
| Harley Davidson | FXRT DYNA SPORT GLIDE | 1987-1991 | 1340 |
| Harley Davidson | FXST 1340 SOFTAIL STANDARD | 1984-1999 | 1340 |
| Harley Davidson | FXSTB SOFTAIL NIGHT TRAIN | 1999-1999 | 1340 |
| Harley Davidson | FXSTC SOFTAIL CUSTOM | 1986-1999 | 1340 |
| Harley Davidson | FXSTS SOFTAIL SPRINGER | 1988-1999 | 1340 |
| Harley Davidson | FXSTS SOFTAIL SPRINGER | 2000-2007 | 1450 |
| Harley Davidson | FXSTSB BAD BOY | 1995-1997 | 1340 |
| Harley Davidson | FXSTSSE SOFTAIL SPRINGER S-EAGLE | 2007-2008 | 1584 |
| Harley Davidson | FXSTSSE3 SOFTAIL SPRINGER CVO | 2009-2009 | 1803 |
| Harley Davidson | FXWG WIDE GLIDE | 1984-1986 | 1340 |
| Harley Davidson | XL 883 SPORTSTER | 1997-1999 | 883 |
| Harley Davidson | XLH 1100 SPORTSTER | 1985-1987 | 1100 |
| Harley Davidson | XLH 1100 SPORTSTER w/39mm Forks | 1987-1987 | 1100 |
| Harley Davidson | XLH 883 SPORTSTER | 1985-1987 | 883 |
| Harley Davidson | XLH 883 SPORTSTER HUGGER | 1988-1999 | 883 |
| Harley Davidson | XLH 883 SPORTSTER SUPER | 1987-1987 | 883 |
| Harley Davidson | XLH 883 SPORTSTER SUPER w/39mm Forks | 1987-1987 | 883 |
| Harley Davidson | XLH 883 SPORTSTER w/35mm Forks | 1987-1987 | 883 |
| Harley Davidson | XLH 883 SPORTSTER w/39mm Forks | 1987-1987 | 883 |
| Harley Davidson | XLH SPORTSTER DELUXE | 1988-1995 | 883 |
| Harley Davidson | XLH SPORTSTER SUPER | 1984-1999 | 883 |
| Harley Davidson | XLH1200 SPORTSTER | 1988-1999 | 1200 |
| Harley Davidson | XLH1200C SPORTSTER CUSTOM | 1996-1999 | 1200 |
| Harley Davidson | XLH1200S SPORTSTER SPORT | 1996-1999 | 1200 |
| Harley Davidson | XLH883 SPORTSTER | 1988-1999 | 883 |
FA94 | FDB352R | 44063 839 | 44063 83A | 44063 83C | 44247-98A | GF057-S3 | 579
