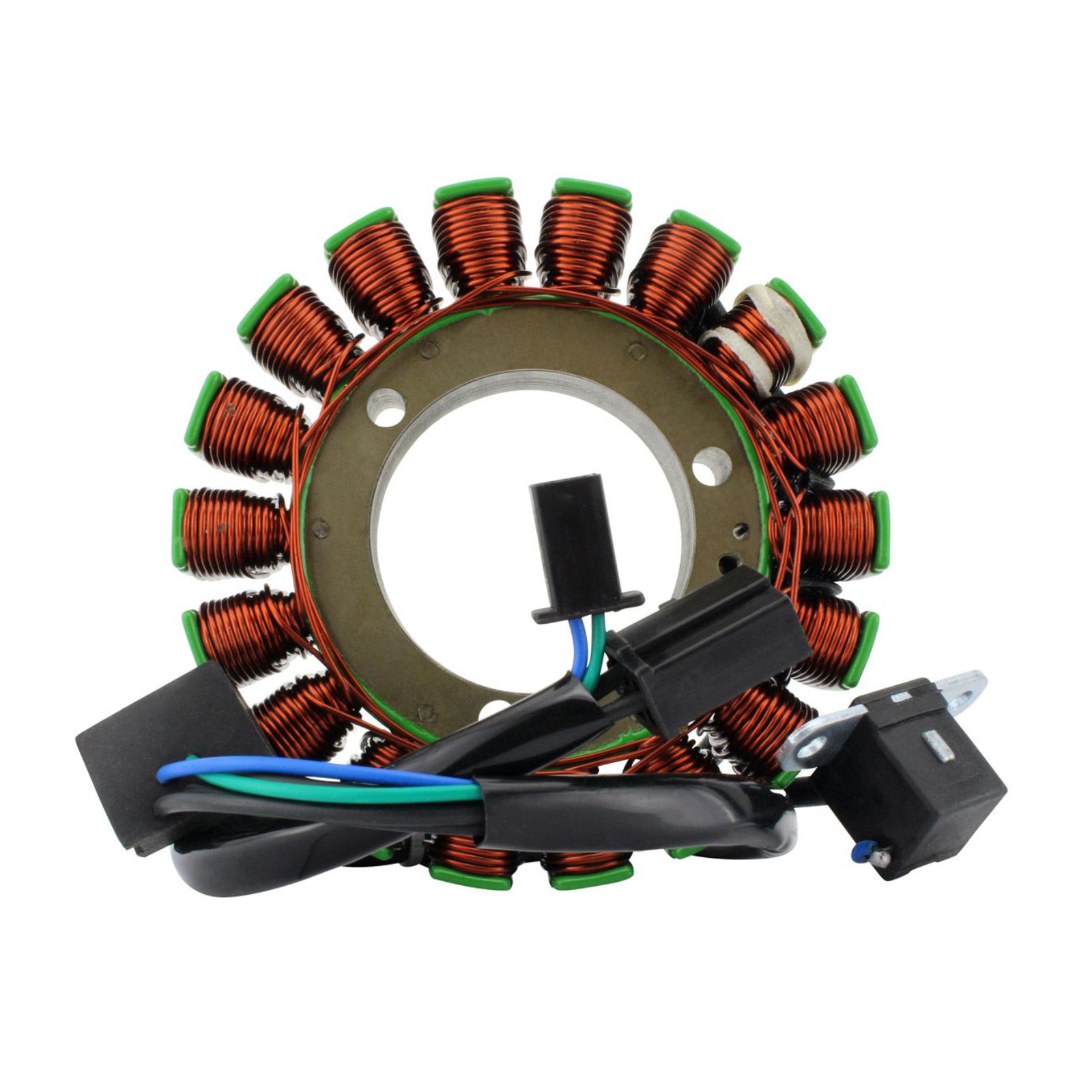

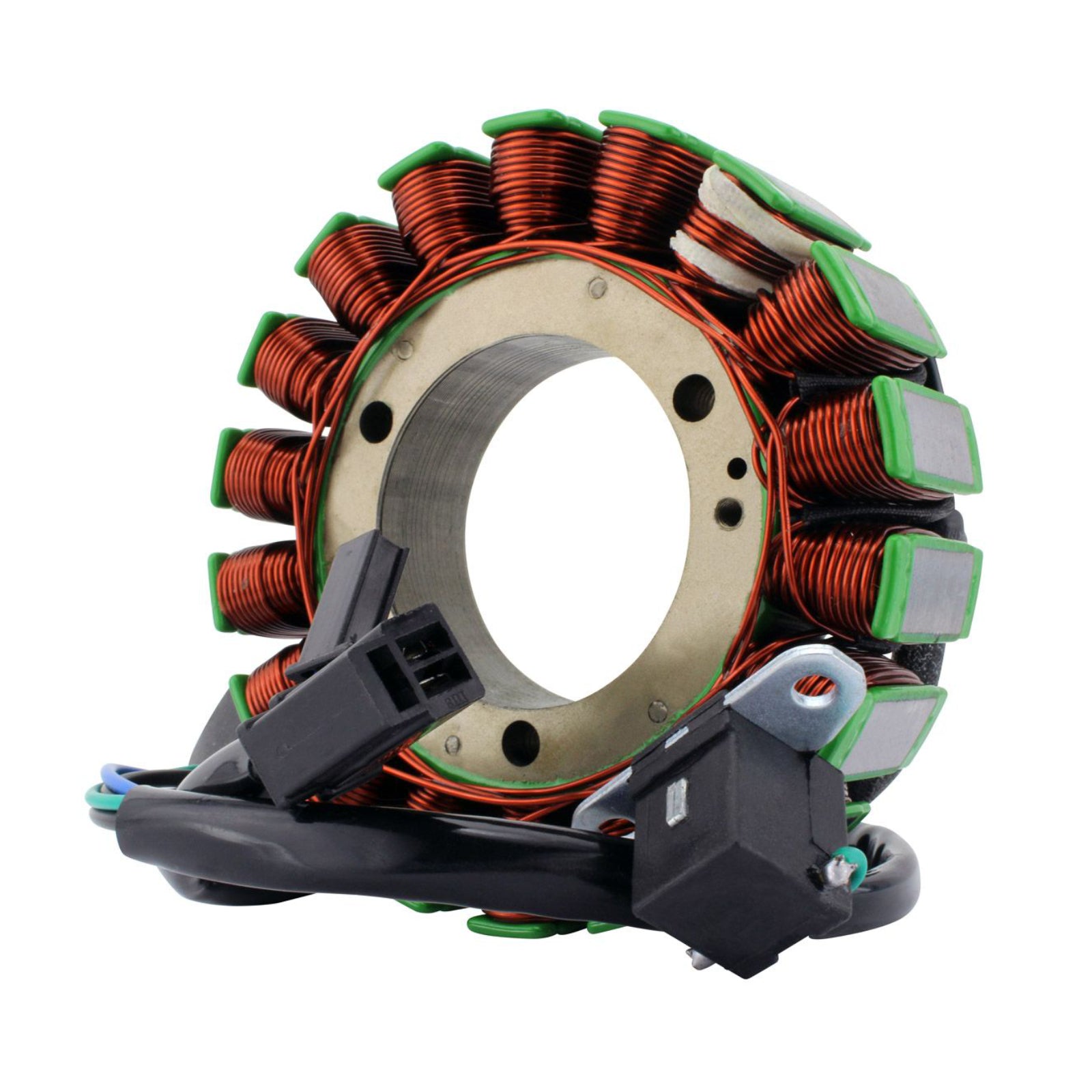

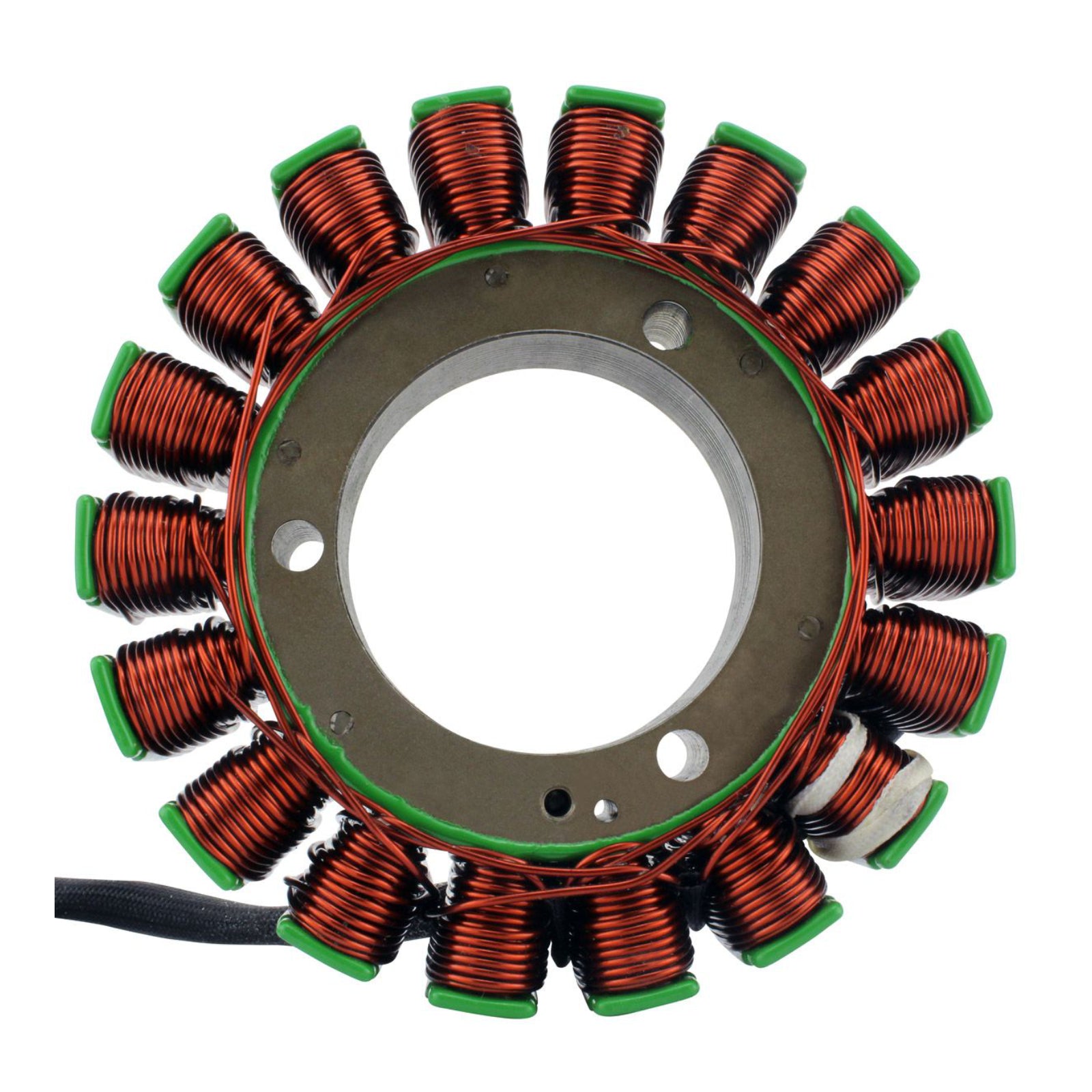

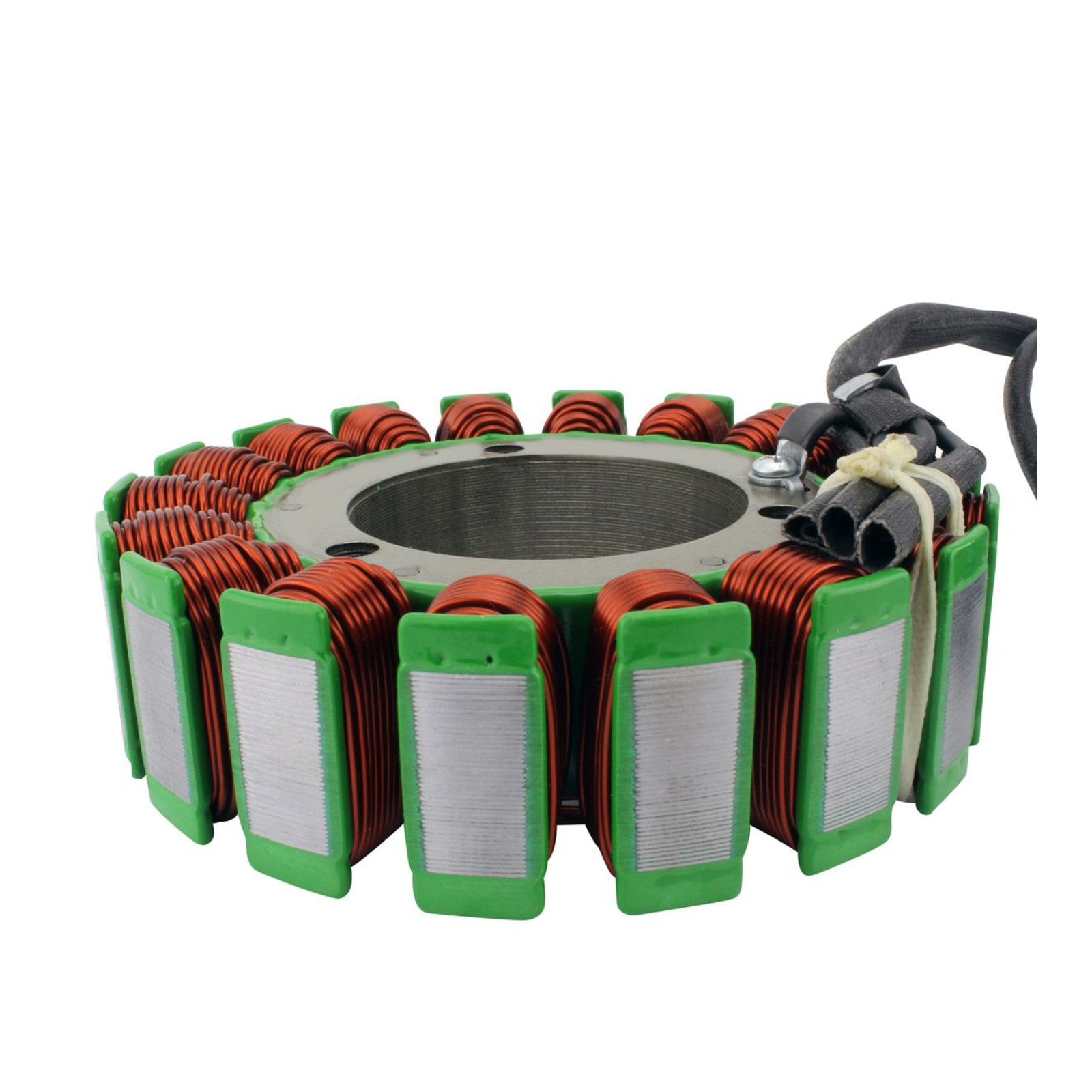

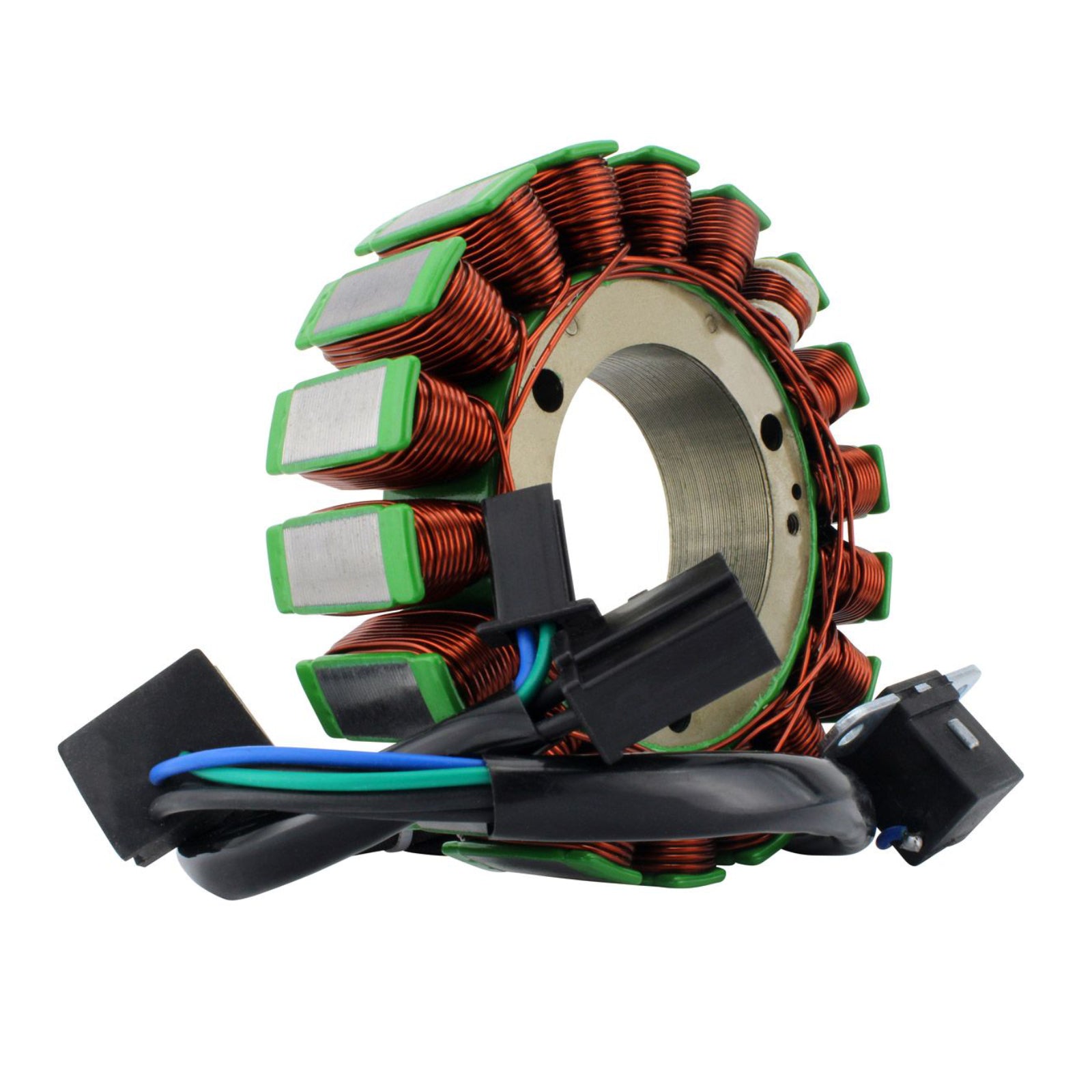

New RMSTATOR Generator Stator For Suzuki VSTORM 1000 02-09' 2012 #RMS010107577

Brand new aftermarket Stator

• Directreplacement to your original unit
• Plug-and-play direct fit easyinstallation
• Highest grade of lamination materials
• Highestgrade of copper winding resistant to 200 degrees Celsius
• Pick uppulsar coil included
• Connectors included
• Rubber grommetincluded
• All products shipped are tested

All itempictures are accurate; if in doubt do not hesitate to compare our item toyour originalpart.

Specifications:

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 119mm
• Thickness: 28 mm
• Length of wires stator to grommet: 160mm
• Length of wires grommet to plug: 430 mm
• Length of pickupcoil's wire to grommet: 150 mm

Otherspecifications:

• Number of wires: 5
• Number of plugs:2
• Number of pins: 5
• Number of poles:18

Wire to wireresistance:

• Alternator: Black to Black = 0.4ohms+-20%
• Alternator: to ground = O.L
• Pickup: Green to Blue =200ohms +-20%

Note: Battery condition isimportant. No stator can make up for a bad or weak battery. If in doubtcharge your battery and have it load tested or simply replace it.ALWAYS START WITH A FULLY CHARGED BATTERY
