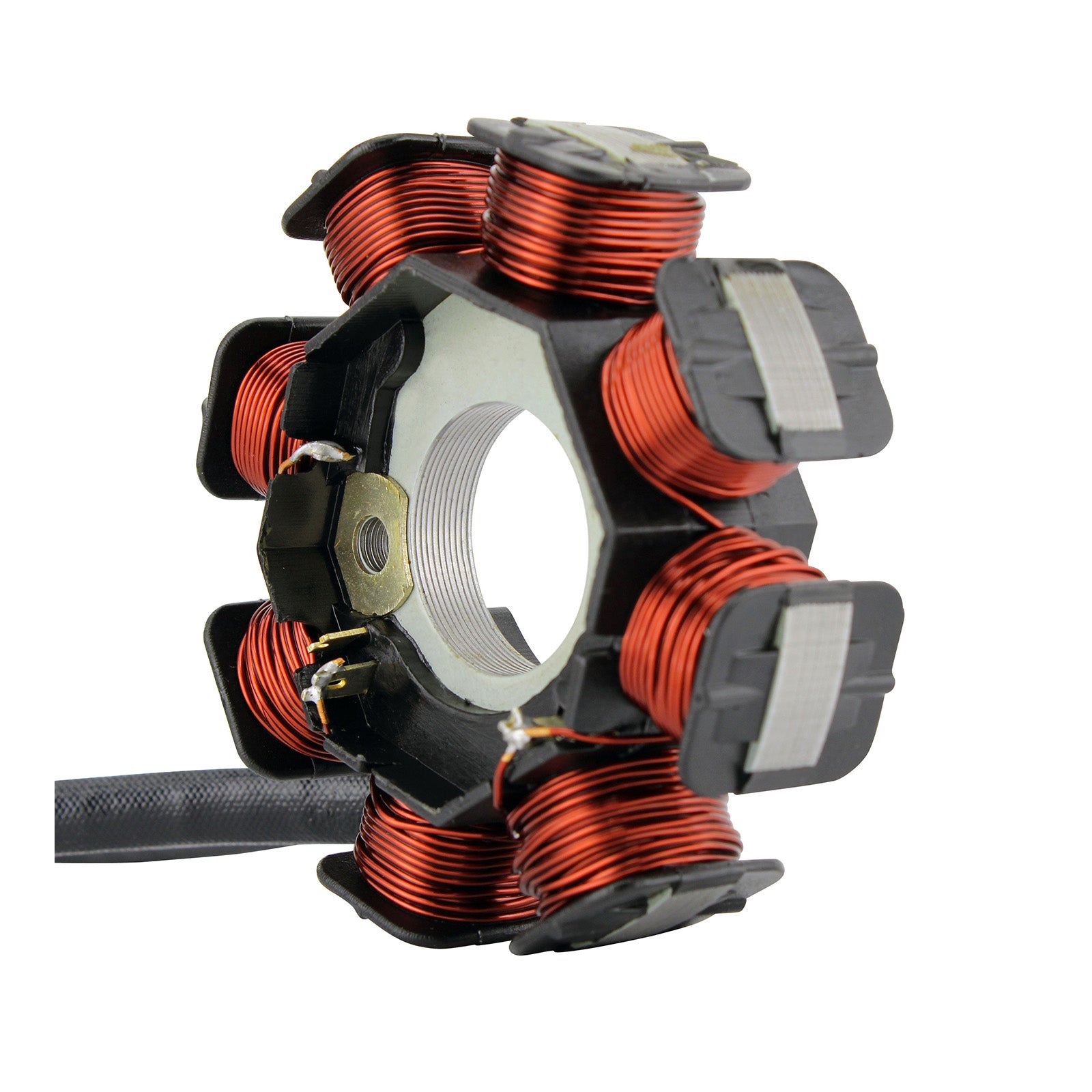

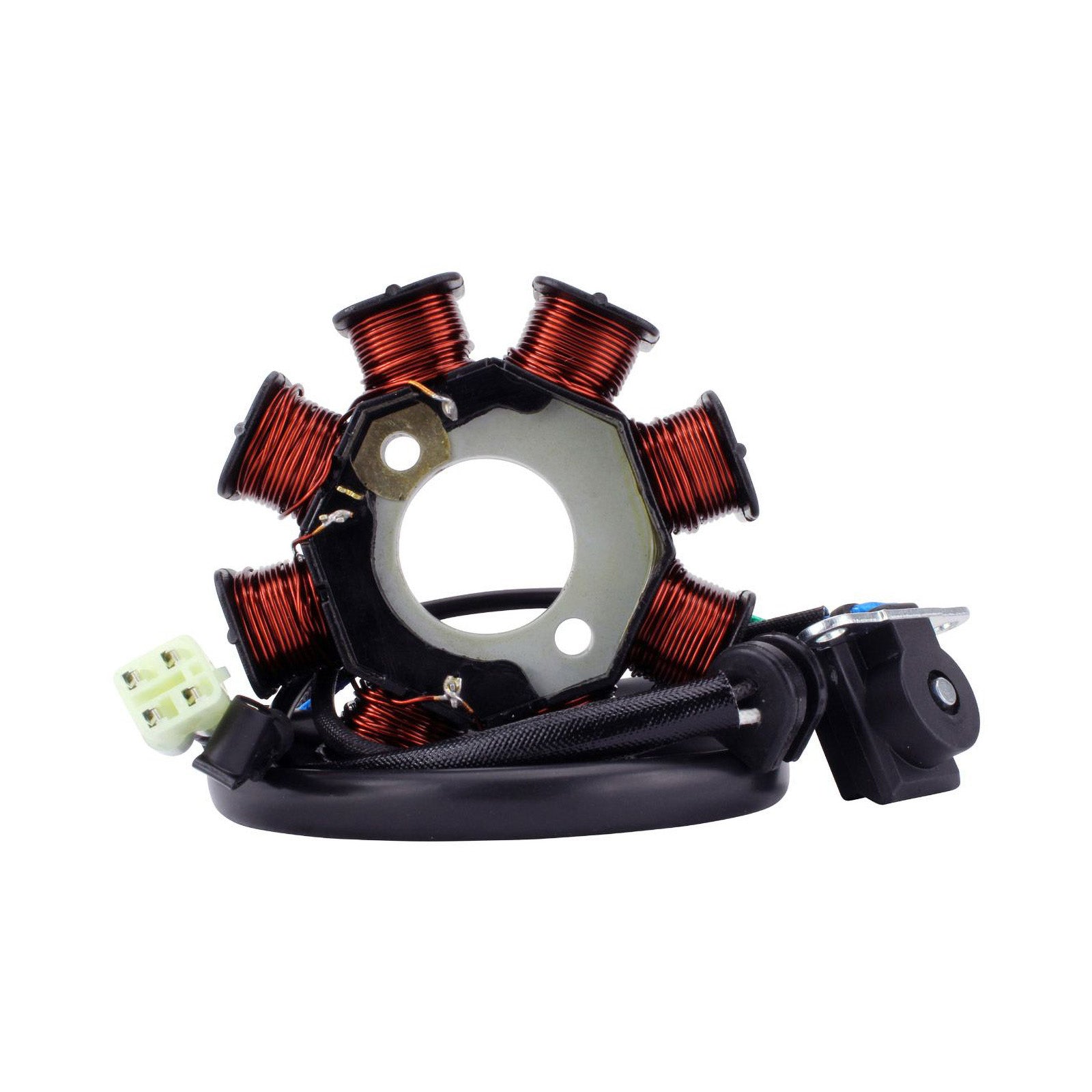

New RMSTATOR Generator Stator For Kawasaki KLX140 2008-2021 #RMS010107080
Was
$425.28
25% OFF
$315.02
Additional product details
Brand new aftermarket stator
- Directreplacement to your original unit
- Plug-and-play direct fit easyinstallation
- Highest-grade laminationmaterials
- Highest-grade copper windings resistant to 200 degreesCelsius.
- Pick up pulsar coil included
- Connectorincluded
- Rubber grommet included
- All products shipped aretested
Specifications:
Dimensions:
- Interior diameter: 29 mm
- Exterior diameter: 88mm
- Thickness: 10 mm
- Length of wires stator to grommet: 110mm
- Length of wires grommet to plug: 475 100 mm
- Length ofpickup coil's wire to grommet: 145 mm
Other specifications:
- Number of wires: 4
- Number of plugs: 2
- Numberof holes: 2
- Number of poles: 8
- Alternator : White to Ground= 1.1 ohms +-20%
- Pickup: Blue/yellow to Ground = 119 ohms+-20%
| Make | Model | Year Range |
|---|---|---|
| Kawasaki | KLX140 Small Wheel | 2008 - 2020 |
| Kawasaki | KLX140L Big Wheel | 2008 - 2020 |
