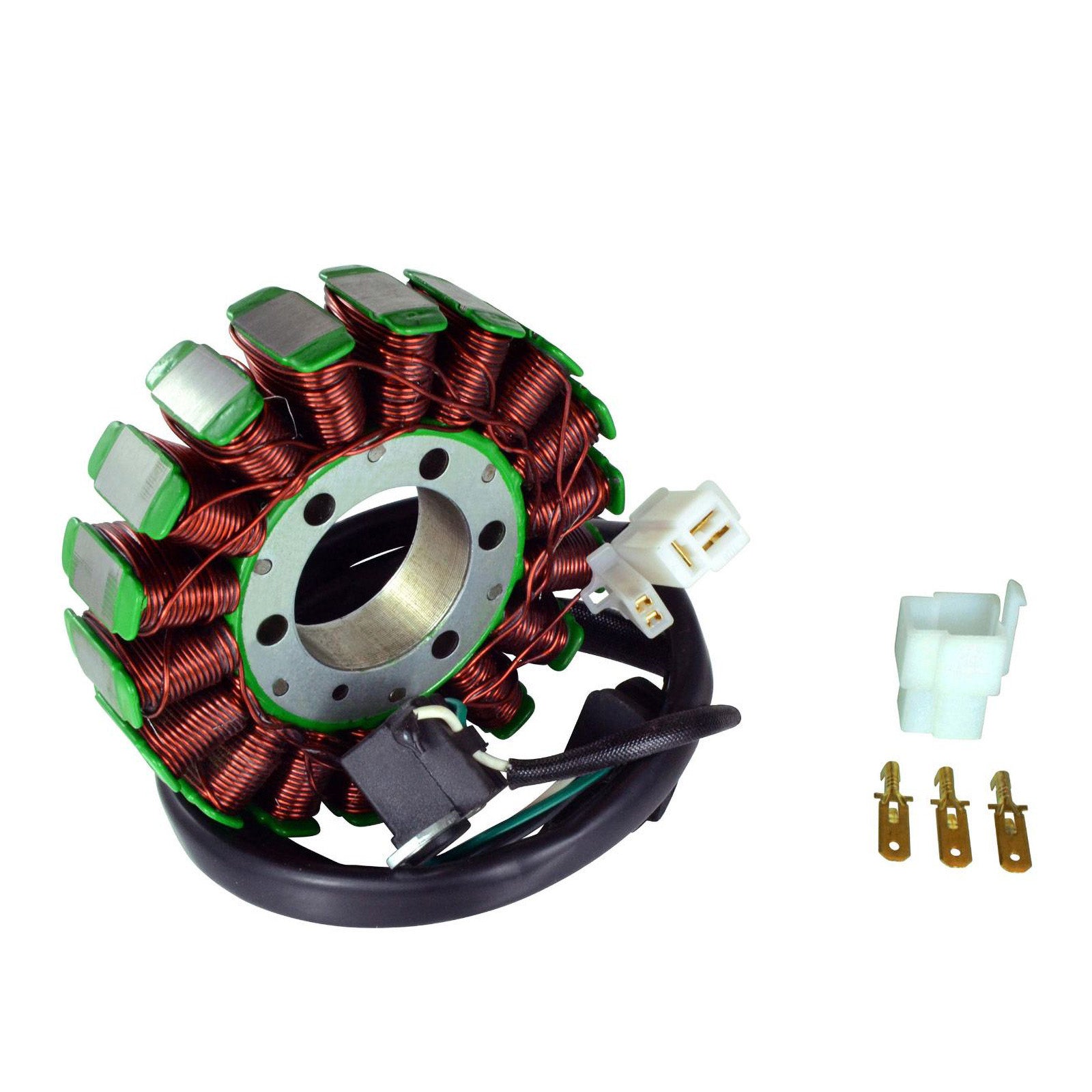

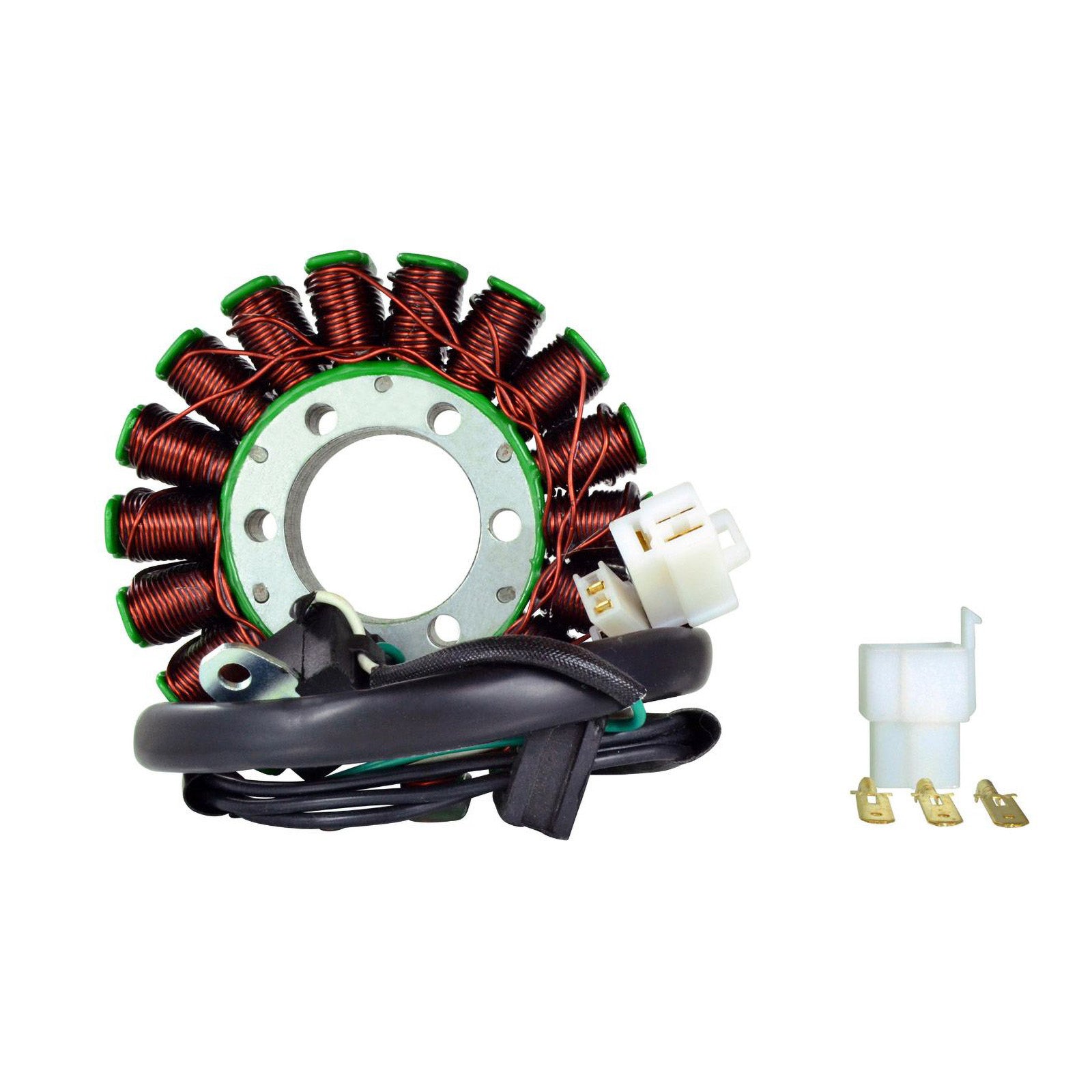

New RMSTATOR Generator Stator For Suzuki SV650 2003-2009 #RMS010102166
Was
$540.89
25% OFF
$400.66
Additional product details
Brand new aftermarket generatorstator
- Direct replacement to your originalunit
- Plug-and-play direct fit easyinstallation
- Highest-grade laminationmaterials
- Highest-grade copper windings resistant to 200 degreesCelsius.
- Pick up pulsar coil included
- Connectorincluded
- Rubber grommet included
- All products shipped aretested
We have even included the opposite connector (mainharness side) as we know these are often melted / corroded / defective anda major cause for repetitive electricalissues.
Specifications:
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 108mm
- Thickness: 19 mm
- Length of wires stator to grommet: 120mm
- Length of wires grommet to plug: 550 mm
- Length of pickupcoil's wire to grommet: 59 mm
Otherspecifications:
- Number of wires: 5
- Number of plugs:2
- Number of pins: 5
Wire-to-wireresistance:
- Alternator: Black to Black = 0.5 ohms+-20%
- Pickup: Green to White = 194 ohms +-20%
| Make | Model | Year Range |
|---|---|---|
| Suzuki | DL650 V Strom | 2006 - 2007 |
| Suzuki | DL650 V Strom, ABS | 2004 - 2005 |
| Suzuki | SV650 | 1999 - 2009 |
| Suzuki | SV650S | 1999 - 2009 |
