RAM MOUNTS Motorcycle Brake / Clutch Reservoir & Handlebar Ball Base #RAMB3097U

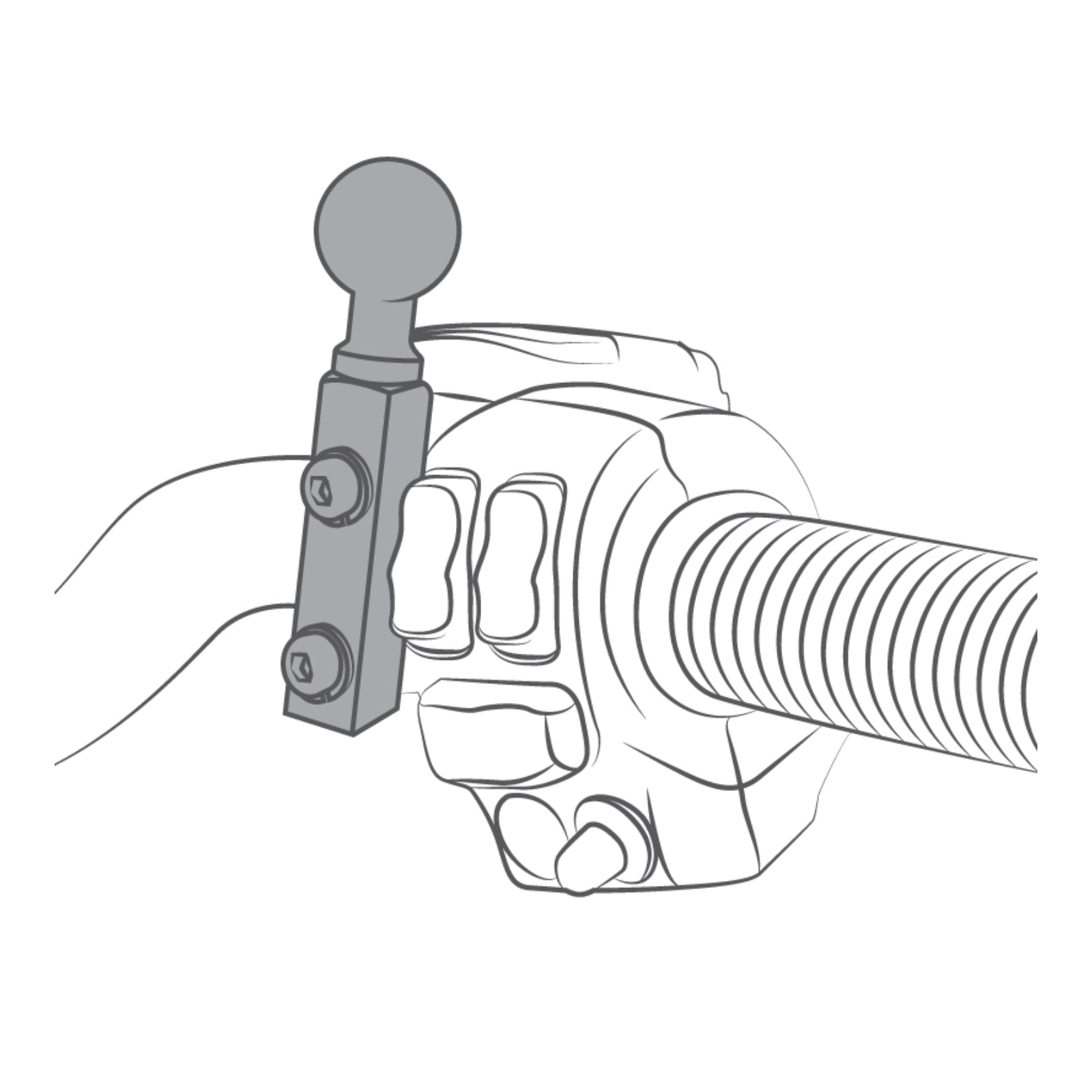

The RAM-B-309-7U combination handlebar and brake/clutch reservoir baseprovides the ultimate flexibility for mounting to your motorcycle. Attachthe base to either your handlebar or brake/clutch and achievenear-infinite adjustability and ideal viewing angles for your phone GPSunit or action camera. The zinc-coated metal U-bolt accommodates railsranging from 0.5 to 1.25 in diameter. Hardwareincluded.

Features:

• Combination handlebar and brake/clutchreservoir base for motorcycles; includes U-bolt hardware
• Included Bsize 1 RAM® rubber ball allows for connection to any B size RAM®double socket arm; ball and socket technology allows for near-infiniteadjustability
• Made of Powder-coated marine-grade aluminum fordurability and reliability in the most demanding marineenvironments

Specifications:

• CLAMP RANGE: 0.5 (12.7mm) - 1.25 (31.7mm) diameter
• BALL SIZE: B Size (1 25.4mm)

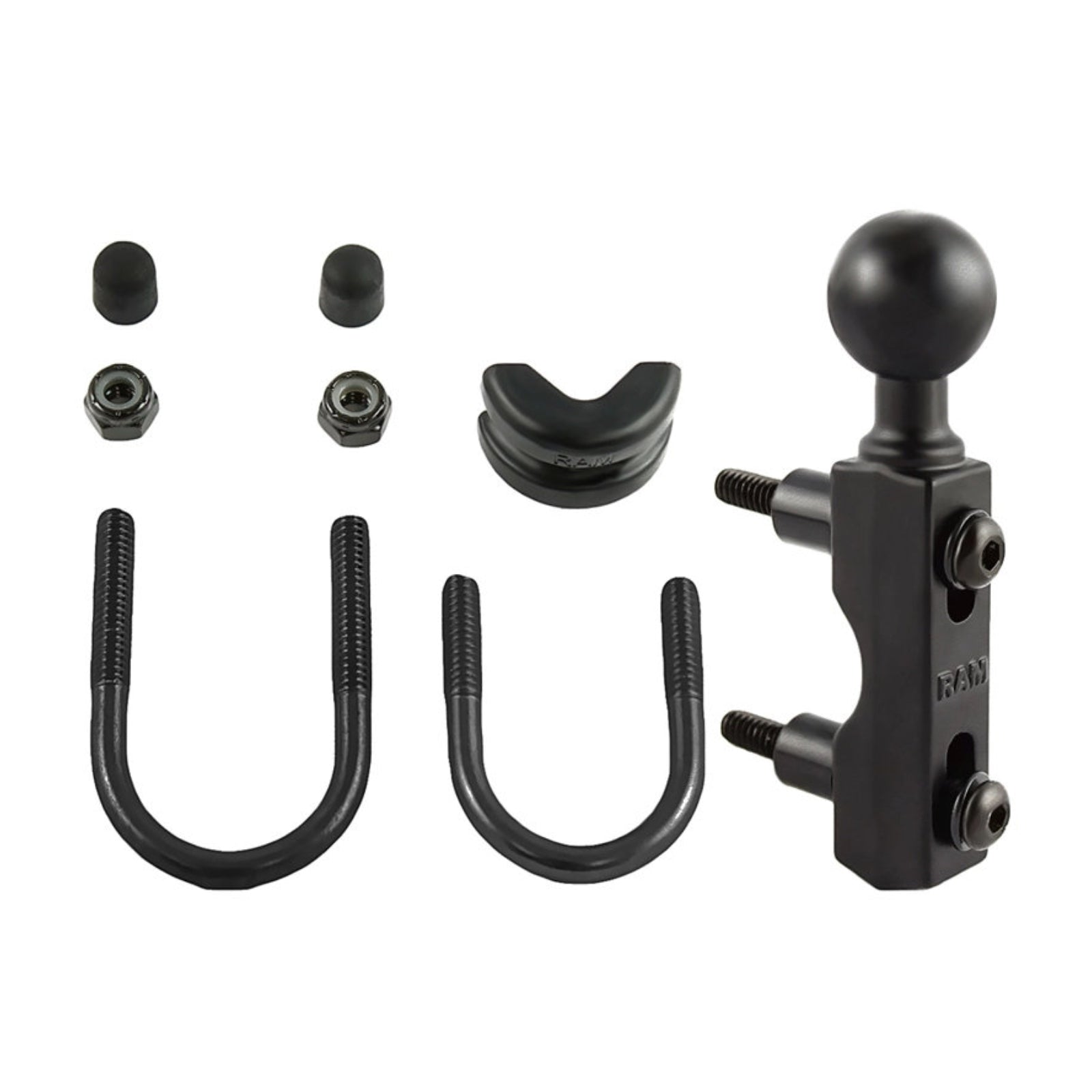

Hardware Included:

• x2 M6 x 55mm HexBolts
• x2 #1/4-20 x 2 Hex Bolts
• x2 1/4 -20 x 2.5 HexBolts
• x2 1/2 Spacers
• x2 1/4 Split Lock Washers
• x11/4 -20 U-Bolt for .5 - 1 Rails
• x1 1/4 -20 U-Bolt for 1 - 1.25 Rails
• x2 1/4 -20 Nylock Nuts
• x2 Rubber Caps
• x1U-Bolt Spacer
