RAM MOUNTS X-Grip Large Phone Mount With Brake / Clutch Reservoir Base
Additional product details

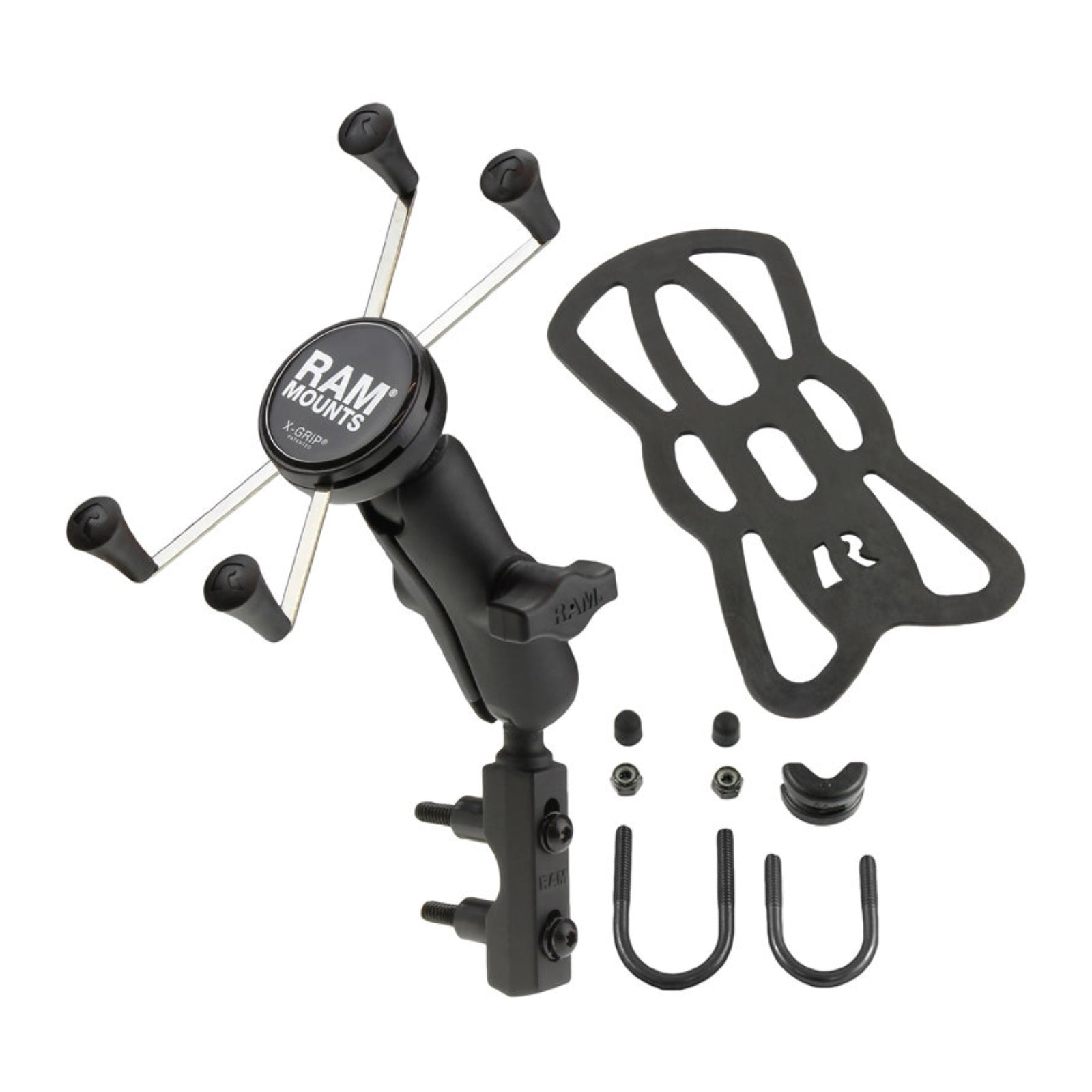

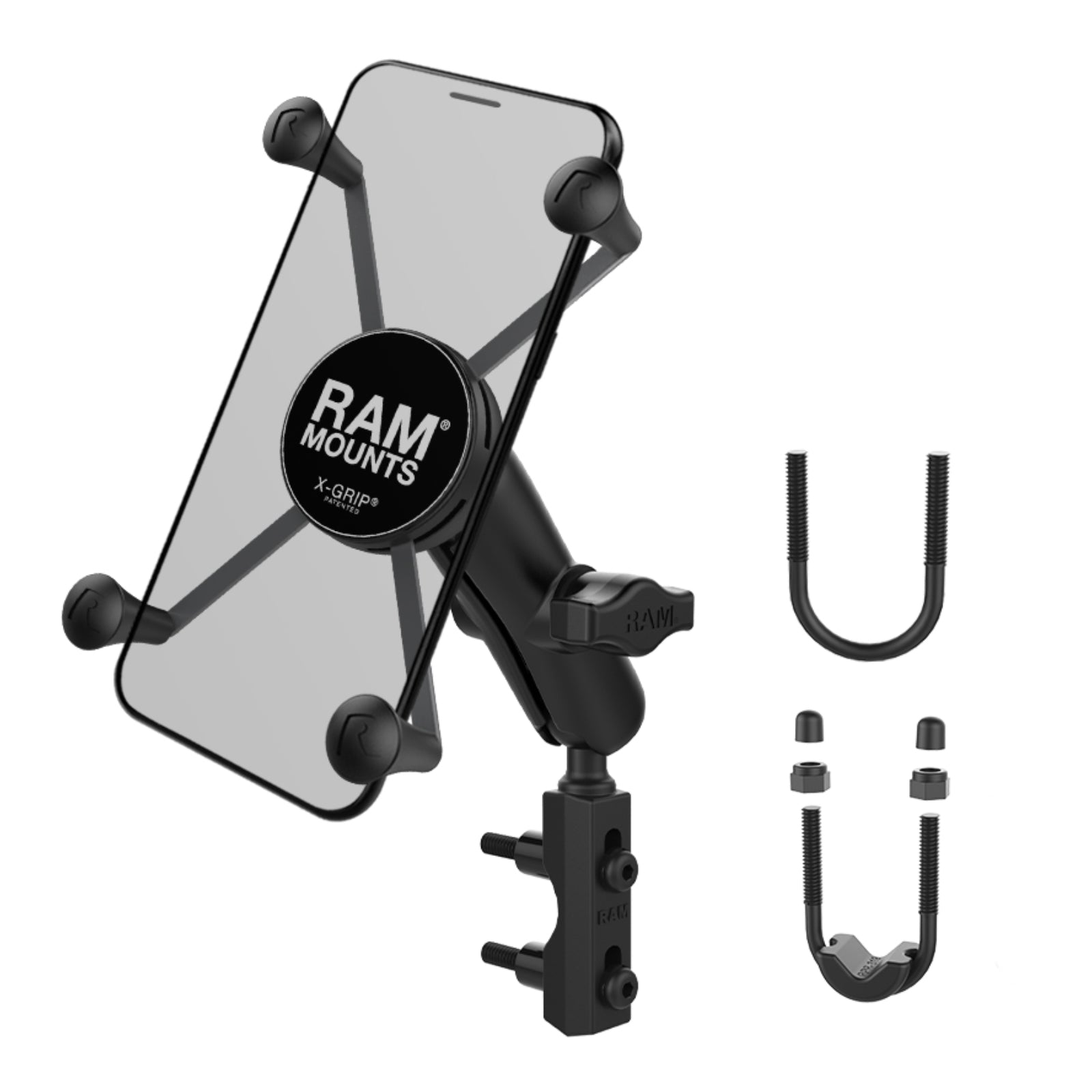

The RAM-B-174-UN10 consists of hardware for mounting to eitherbrake/clutch reservoirs and rails that are 0.5 to 1.25 in diameter adouble socket arm and a universal X-Grip® largephone/phablet holder. Designed into the mount is a 1 diameter patentedrubber ball and socket system with adjustment points at both ends of thesocket arm; this with a twist of the arm knob allows you to move theX-Grip® mount to your optimum viewing position. The mountinghardware for brake/clutch reservoirs includes both standard and metricmounting bolts. The included X-Grip® cradle has a clean andclever four-leg design that sports great holding power without hiding yourphone behind foam pads and plastic. The spring-loadedX-Grip® cradle expands and contracts allowing for a perfectcustom fit for your cell phone. The perfect complement to the modern sleekinterior of today's vehicles the RAM X-Grip® is the cellphone cradle evolved. The X-Grip® includes a device tetherrecommended for outdoor applications. The cradle is compatible withhandheld devices that will fit the dimensions listed below. It is importantto verify the dimensions of your handheld device with a case/sleeve/skinwhen determining the overall size.
Specifications:
- CLAMPRANGE: 0.5 (12.7mm) - 1.25 (31.7mm) diameter
- HOLDER DIMENSIONS:Width Range: 1.75 (44.4mm) - 4.5 (114.3mm) Depth Range: 0.875 (22.2mm)max
- SOCKET-TO-SOCKET LENGTH: 3 (76.2mm)
- BALL SIZE: B Size(1 25.4mm)
Assembly Hardware Included:
- x1 OptionalTether
- x1 Glue Tube for Rubber Caps
- x2 M6 x 55mm HexBolts
- x2 #1/4-20 x 2 Hex Bolts
- x2 1/4 -20 x 2.5 HexBolts
- x2 1/2 Spacers
- x2 1/4 Split Lock Washers
- x11/4 -20 U-Bolt for .5 - 1 Rails
- x1 1/4 -20 U-Bolt for 1 - 1.25 Rails
- x2 1/4 -20 Nylock Nuts
- x2 Rubber Caps
- x1U-Bolt Spa
