New MTX 846 Steel Sprocket - Rear #520 (41T) #SPR85941
Additional product details
MTX OE Steel sprockets are strong and durable, heat-treated and hand-finished for longevity. Front sprockets are constructed from SCM420 chromoly steel alloy where rear sprockets are constructed from C45 high carbon steel with a Zinc electroplated finish. Designed as an OEM replacement to exceed OEM specifications at a fraction of the price, making them your ideal cost-effective solution for replacing old worn and warped sprockets.
OEM replacement
Exceeds OEM specifications
Heat treated and hand finished
Constructed from C49 high carbon steel
Pitch: 520
Teeth: 41

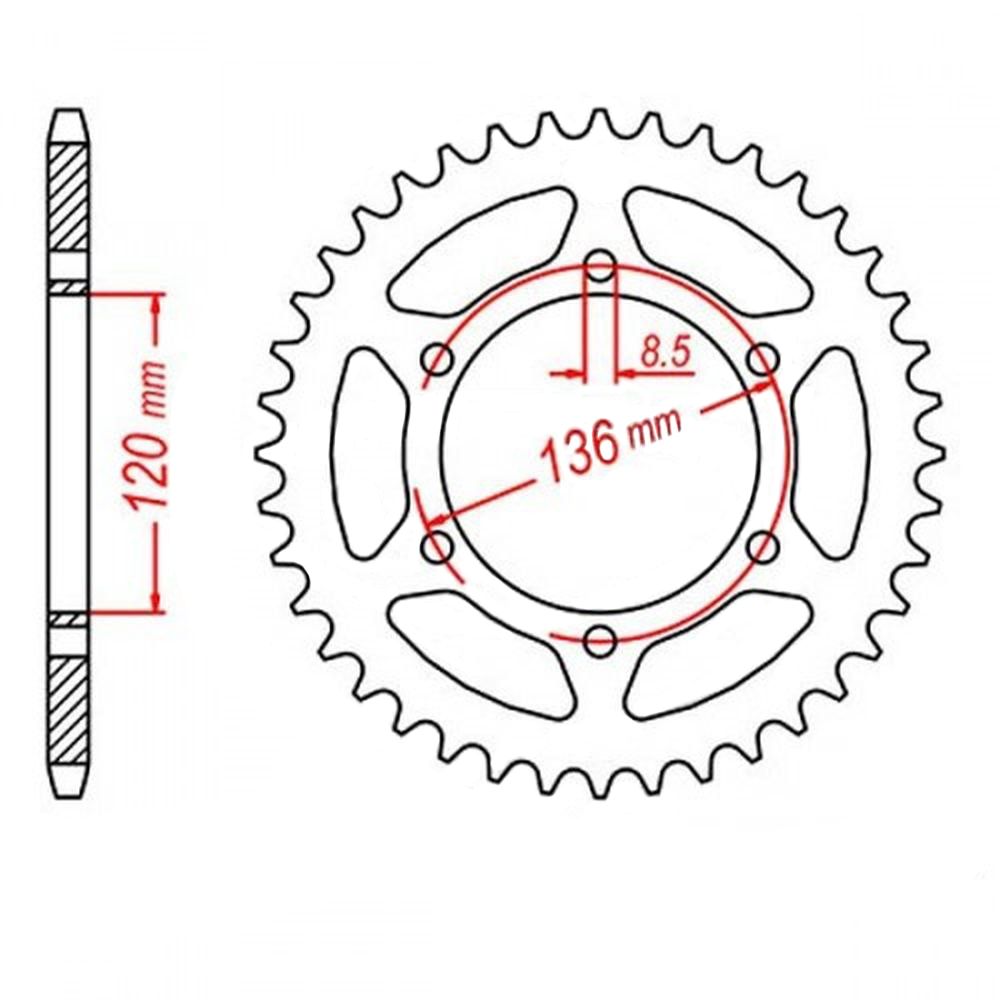

NOTE: This sprocket has two different bolt hole patterns drilled, one with a diameter of 136mm as pictured and the other with a diameter of 140mm. Both have 8.5mm bolt holes.
NOTE: Actual sprocket design may be different from the image above.
| Make | Model | Year Range | Capacity |
|---|---|---|---|
| Honda | XL250R | 1984-1987 | 250 |
| Honda | XR250L | 1991-2001 | 250 |
| Honda | XR400SM SUPER MOTARD | 2000-2009 | 400 |
| Kawasaki | KL250 | 1980-1984 | 250 |
| Kawasaki | KLR250 | 1984-2007 | 250 |
| Kawasaki | KV250 | 1983-1988 | 250 |
| Yamaha | RZ250 | 1983-1987 | 250 |
| Yamaha | RZ350 YPVS | 1983-1984 | 350 |
| Yamaha | RZ350R | 1985-1987 | 350 |
| Yamaha | SRX600 | 1985-1990 | 600 |
| Yamaha | SZR660 | 1996-2001 | 659 |
| Yamaha | TZR250T 2MA | 1987-1988 | 250 |
| Yamaha | TZR250W 3MA | 1989-1990 | 250 |
| Yamaha | XJR400 | 1993-1995 | 400 |
9346152008121 | JTR260 41T | JTR475 41T | JTR846 41T
