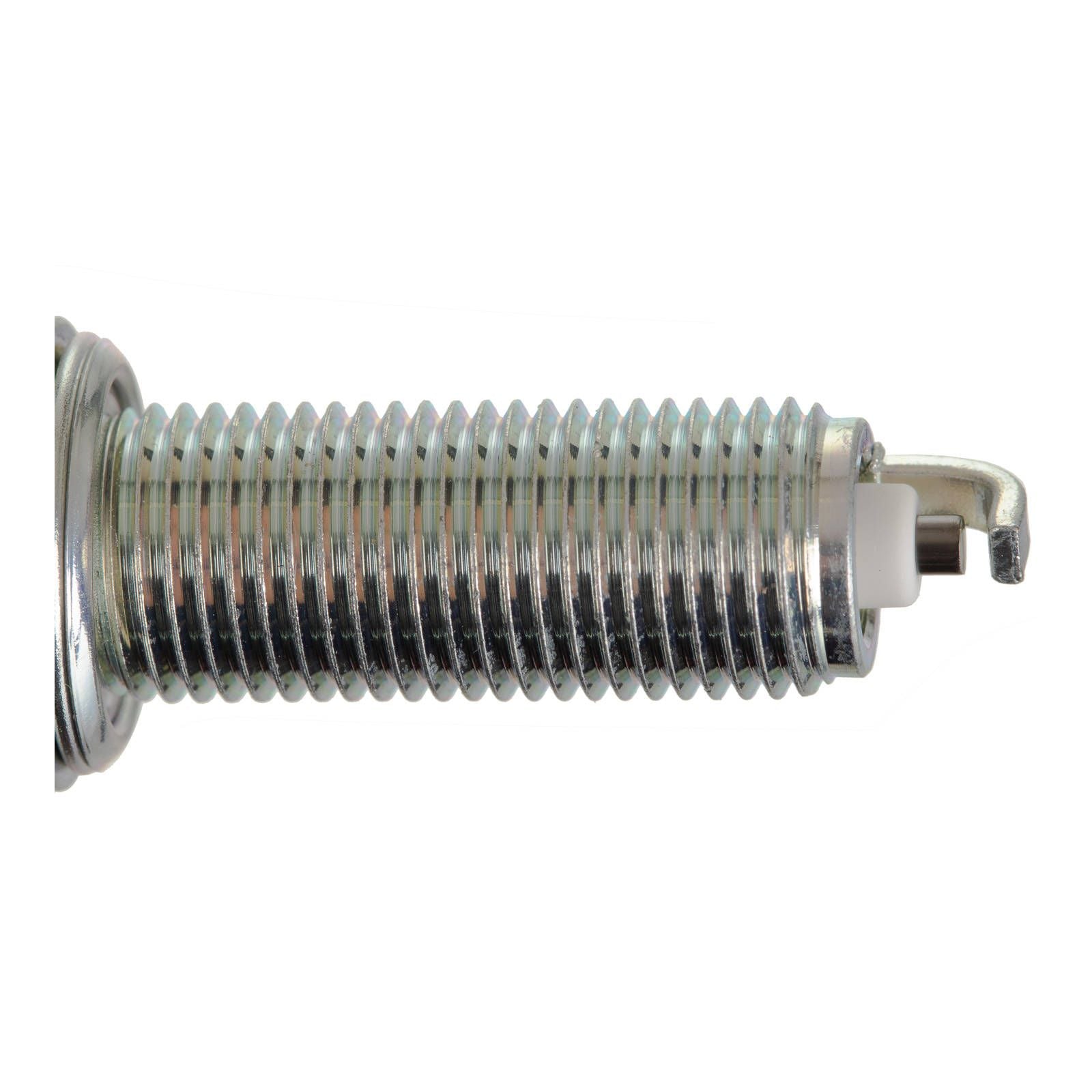

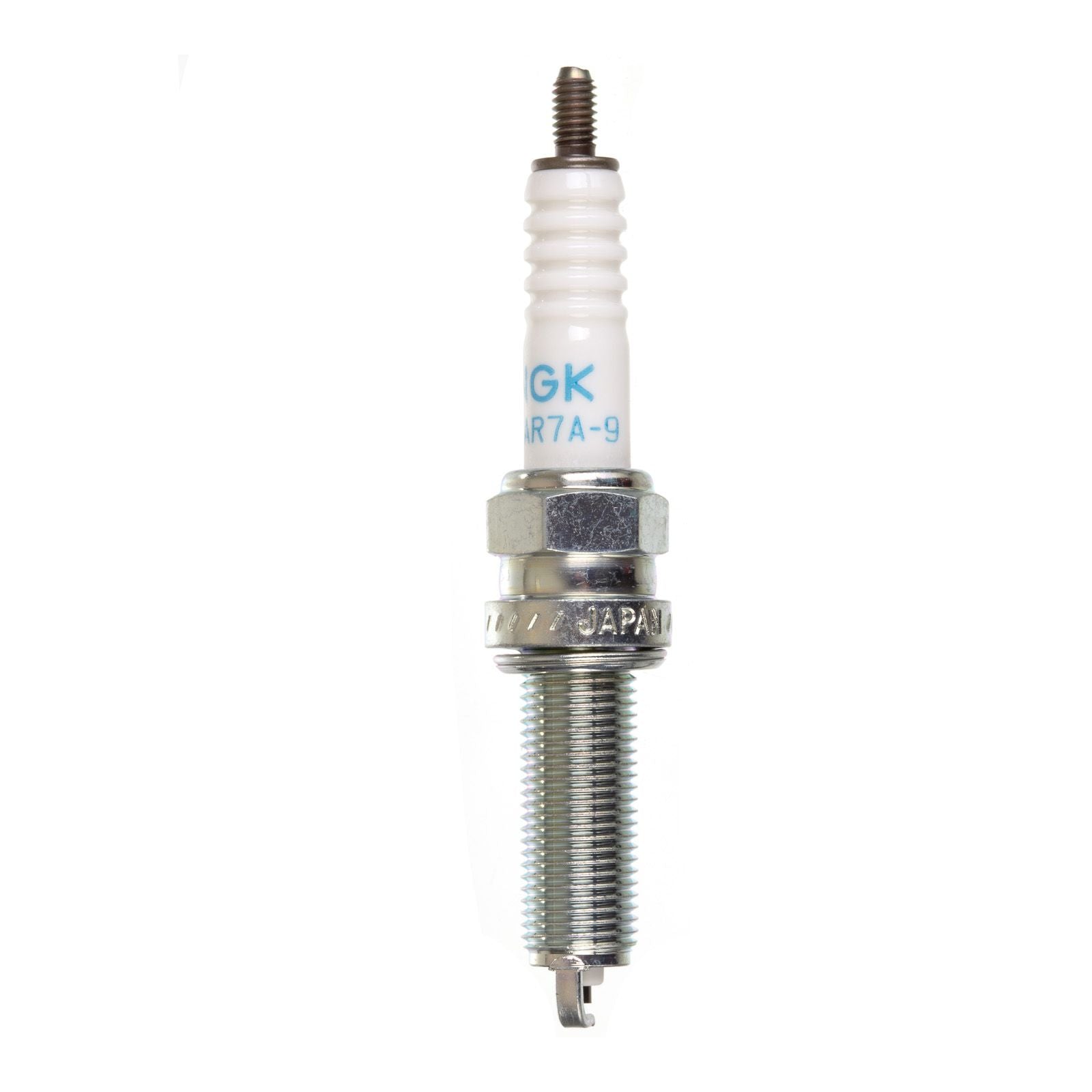

New NGK Spark Plug - LMAR7A-9 (4908) #NGKLMAR7A9
Additional product details
NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.
Don’t just ask for a spark plug, insist on NGK.
The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.
Shell
- Thread Size: 10mm
- Thread Pitch: 1.0mm
- Seat Type: Gasket
- Resistor Value: 5K Ohm
- Reach: 26.5mm (1.04")
- Hex Size: 14mm (9/16")
- Terminal Type: Threaded Stud
- Overall Height: ISO
- Gap: 0.9mm (0.035")
Centre Electrode
- Material: Nickel
- Type: Standard
- Size: 2.5mm
- Projection: Projected
Ground Electrode
- Material: Nickel
- Type: Standard
- Quantity: 1
Specifications
- Heat Range: 7
Make | Model | Year Range | Capacity |
---|---|---|---|
Husqvarna | 701 ENDURO | 2017-2021 | 701 |
KTM | 1190 ADVENTURE | 2013-2017 | 1195 |
KTM | 1190 ADVENTURE R | 2013-2017 | 1195 |
KTM | 1190 RC8R | 2011-2016 | 1190 |
KTM | 1290 SUPER ADVENTURE | 2015-2017 | 1301 |
KTM | 1290 SUPER ADVENTURE R | 2018-2020 | 1290 |
KTM | 1290 SUPER ADVENTURE S | 2018-2020 | 1290 |
KTM | 1290 SUPER DUKE GT | 2017-2020 | 1301 |
KTM | 1290 SUPER DUKE R ABS | 2015-2020 | 1301 |
KTM | 1290 SUPER DUKE R SPECIAL EDITION | 2017-2017 | 1301 |
KTM | 690 DUKE | 2012-2017 | 690 |
KTM | 690 DUKE ABS | 2012-2015 | 690 |
KTM | 690 DUKE R | 2012-2017 | 690 |
KTM | 690 ENDURO R | 2014-2020 | 690 |
Suzuki | LTA750XP KINGQUAD AXi P/STEER 4X4 | 2014-2020 | 750 |
Yamaha | XVS1300 CU STRYKER | 2015-2015 | 1300 |
Yamaha | XVS1300 STRYKER 1300 | 2012-2019 | 1300 |
Yamaha | XVS1300 STRYKER 1300 | 2011-2011 | 1304 |
Yamaha | XVS1300 V STAR | 2007-2013 | 1300 |
Yamaha | XVS1300A DRAGSTAR | 2008-2009 | 1300 |
Yamaha | XVS1300A V STAR | 2014-2018 | 1300 |
Yamaha | XVS1300AT STAR TOURER | 2015-2016 | 1300 |
Yamaha | XVS1300AT TOURER | 2014-2014 | 1300 |
Yamaha | XVS1300AT V STAR TOURER | 2014-2014 | 1300 |
